[IBIS] Clarification of Metrics in qualifing an LVDS buffer.

From: Muniswara Reddy Vorugu <Muniswarareddy.Vorugu_at_.....>
Date: Wed Mar 19 2008 - 06:01:34 PDT
Hi,

I am qualifying an LVDS buffer,

Added to syntax check ( ibischk4) and visual check (hyperlynx) I am
doing the following experiment in H-spice



For qualifying the transmitter at system level, I am following the
following set-up



 (+ve)   Tx_padP    <========> txline(Z0=50) <===========> |


R = 100   (Resistor termination)

  (-ve)   Tx_padN    <========> txline(Z0=50) <===========> |



Total round trip delay of Transmission line is 240ps   and a square wave
of 5 ns pulse width is transmitted



With this kind of set-up I am qualifying model I against the extracted
spice netlist.



What is the best qualifying parameter?

Is verifying against       Differential mode voltage  {   (  V( padN)  -
V( padP ) ) / 2  }     sufficient

Or

need to look at              Common mode Voltage {   (  V( padN)  +  V(
padP ) ) / 2  }

Or

Matching both the signal

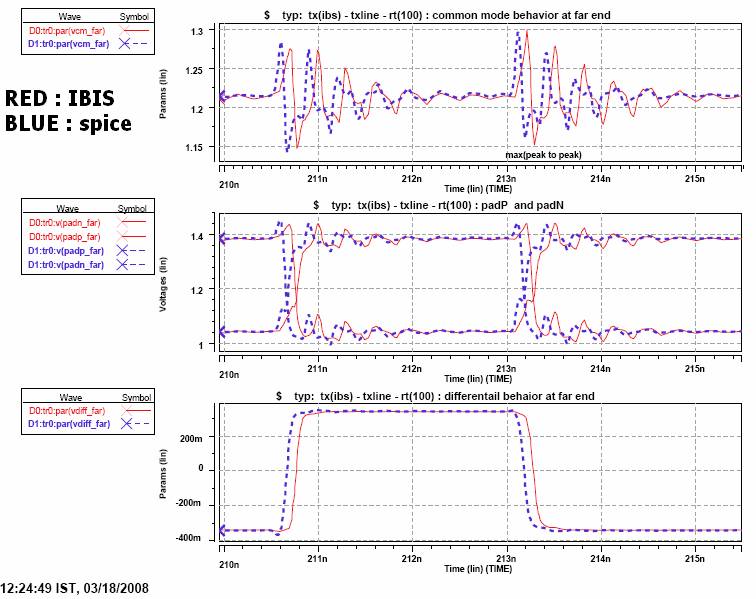

The correlation that I am getting is as shown in figure. Can you make a
comment on the quality and the correlation of the model?





Thank you,

Muniswara Reddy . V

Design engineer, PIPD-IO group,

Bangalore.




--
