Date: Fri Nov 17 2006 - 06:30:07 PST

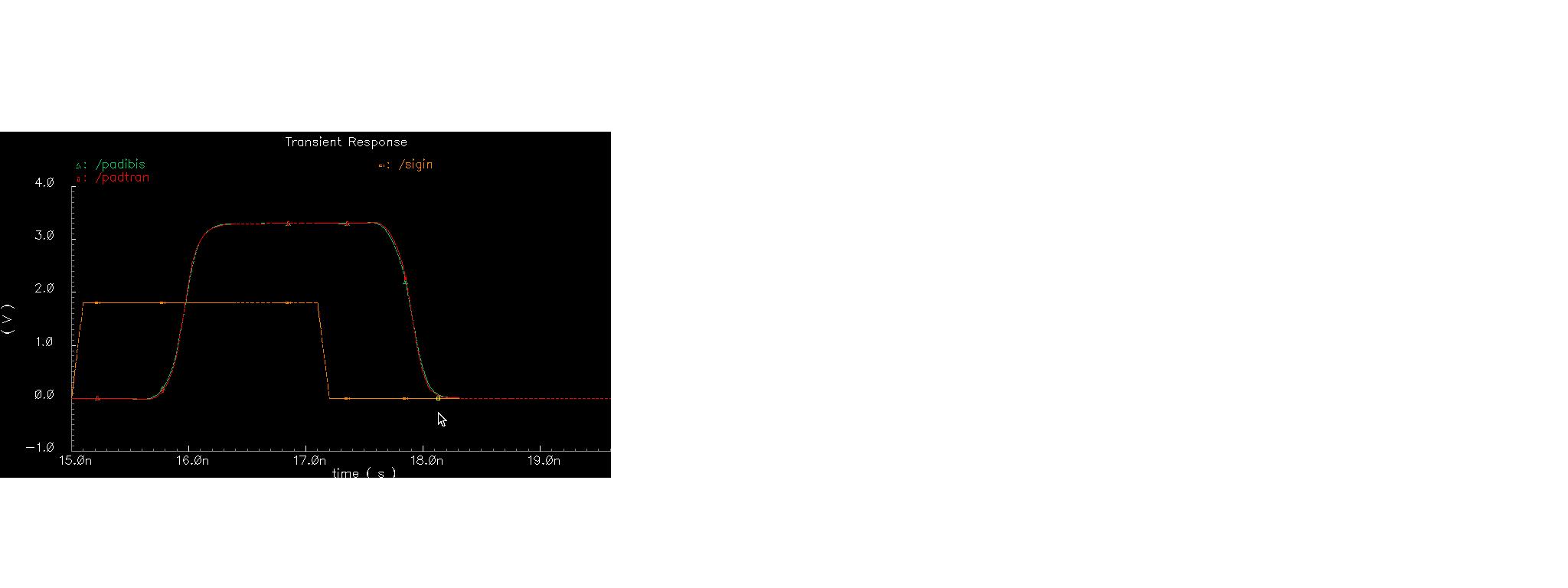

Fabio, It is good that you are taking the time and effort to verify your completed model against simulation (A lot of vendors don't). You should be able to get a MUCH better match than that, however. In general, the DC high and low levels should be within a few mV of simulation, and the edges should be quite close as well. I'm attaching a sample waveform that I obtained. It shows the square wave input to the driver (orange), and the green signal is the output of the ibis model and red signal is the output of the transistor model. Check that you are using identical output loading in both simulations. Start by using just a resistive load to ground, and no RLC package parasitics (It looks like you have something more complex based on the amount of overshoot and ringing). I've used spectre and hspice to simulate ibis models, and they ignore package parasitics in the ibis model, so I just put a resistive load to ground on the output of the transistor model and the ibis model. I don't know if Eldo ignores this information as well, but if in doubt, just set it to zero in the ibis file. This will help to ensure that you are comparing both simulations with identical loads. However, this should not cause the huge DC offset problems that you have (unless your parasitics are way too large). Chances are that there is something wrong in your clamp data and pullup/pulldown data. Hope this helps... Dwayne Johnson IC Design Engineer Gennum Corporation, 4281 Harvester Road Burlington, Ontario, Canada L7L 5M4 website: www.gennum.com email: dwayne_j@gennum.com phone: 905-632-2999 x 2640 fax: 905-633-8105 -----Original Message----- From: owner-ibis-users@eda.org [mailto:owner-ibis-users@eda.org] On Behalf Of Fabio BRINA Sent: Friday, November 17, 2006 4:39 AM To: ibis-users; ibis-info Subject: [IBIS-Users] sim results Hi experts, I have extracted ibis model by s2ibis3 tool, the ibisck don't reveal any errors or warnings. But when I compare the ibis model simulation with the original Eldo simulation , the width of the ibis output is real smaller, and the initial point is 1.7V instead of 0V. (see figure) Which is, in your opinion, a possible problem? I have to throw away the .ibs model? (I hope no!) Thanks all Fabio -------------------------------------------------------------------- |For help or to subscribe/unsubscribe, e-mail majordomo@eda-stds.org |with the appropriate command message(s) in the body: | | help | subscribe ibis <optional e-mail address, if different> | subscribe ibis-users <optional e-mail address, if different> | unsubscribe ibis <optional e-mail address, if different> | unsubscribe ibis-users <optional e-mail address, if different> | |or e-mail a request to ibis-request@eda-stds.org. | |IBIS reflector archives exist under: | | http://www.eda-stds.org/pub/ibis/email_archive/ Recent | http://www.eda-stds.org/pub/ibis/users_archive/ Recent | http://www.eda-stds.org/pub/ibis/email/ E-mail since 1993
