Do you mean that If he will set a very same length to both T branches - then the phenomenon will disappear?
Naftali Refaeli
CAE Engineer
ITO
HP Enterprise Services
Telephone +972 3.9266973
Mobile +972 52.3542043
Email Naftali.Refaeli@ecitele.com<mailto:Naftali.Refaeli@ecitele.com>
From: owner-ibis-users@eda.org [mailto:owner-ibis-users@eda.org] On Behalf Of Muranyi, Arpad
Sent: Tuesday, July 05, 2011 6:45 PM
To: 'ibis-users'
Subject: RE: [IBIS-Users] A question about the ibis simulation.
Grace,
It looks like that the first ledge is the voltage that the
driver can drive with the load imposed on it by the T-line.
Once the reflection comes back to the driver the voltage
steps up to the full swing levels. This is basic T-line
theory.
Arpad
============================================================
From: owner-ibis-users@eda.org [mailto:owner-ibis-users@eda.org] On Behalf Of Zhanggezi
Sent: Monday, July 04, 2011 8:54 PM
To: 'ibis-users'
Subject: [IBIS-Users] A question about the ibis simulation.
Hi All,

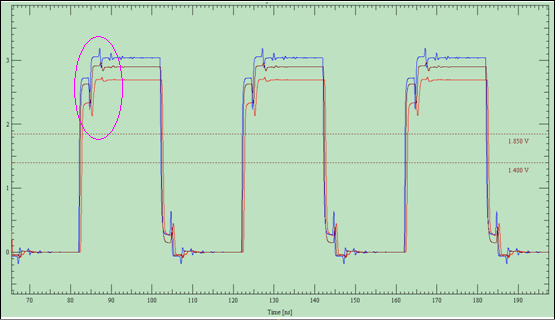

The topology is one on one. The simulation result is below. I am curious about the simulation circled
by red pink. What's the cause? Could someone give me any hint?
[cid:image001.png@01CC3B44.250744B0]
Thank you.
Grace
